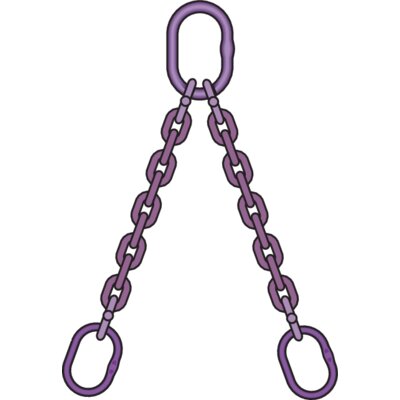

Chain Sling CSX-280 Grade 10, sling alloy steel

Design: Chain sling with master links on both ends. Other combinations possible on demand.

Dimensions: Ø 6-26 mm. (other dimensions on demand).

Material: Alloy steel.
Marking: According to standard, CE-marked
Temperature range: -40°C up to 200°C (up to 380° possible on demand)
Standard: EN 818-4
Warning: Not to be heat-treated.

Safety factor: 4:1
Grade: 10

After click on the “Show table” button, you will see the table with all technical details about the product.

Chain Sling Grade 10

EN 818-4, but with higher WLL

Chain Ø	1-part			2-part		3-4-part		Endless

	Straight pull	Choke hitch	Basket hitch	0°−45°	45°−60°	0°−45°	45°−60°	Straight pull	Choke hitch	Basket hitch
mm	Max last (WLL) i ton
6	1,40	1,12	2,80	2,00	1,40	3,00	2,12	2,80	2,24	5,60
7	1,90	1,50	3,80	2,65	1,90	4,00	2,80	3,80	3,00	7,60
8	2,50	2,00	5,00	3,55	2,50	5,30	3,75	5,00	4,00	10,00
10	4,00	3,15	8,00	5,60	4,00	8,40	6,00	8,00	6,30	16,00
13	6,70	5,30	13,40	9,50	6,70	14,00	10,00	13,40	10,60	26,80
16	10,00	8,00	20,00	14,00	10,00	21,20	15,00	20,00	16,00	40,00
19	14,00	11,20	28,00	20,00	14,00	30,00	21,20	28,00	22,40	56,00
20	16,00	12,80	32,00	22,40	16,00	33,60	24,00	32,00	25,60	64,00
22	19,00	15,00	38,00	26,50	19,00	40,00	28,00	38,00	30,00	76,00
26	26,50	21,20	53,00	37,50	26,50	56,00	40,00	53,00	42,50	106,00
32	40,00	31,50	80,00	56,00	40,00	85,00	60,00	80,00	64,00	160,00
Factor (K_L)	1	0,8	2	1,4	1	2,1	1,5	2	1,6	4
When a multi-leg sling is used in a chocker hitch, reduce the values by 20%
