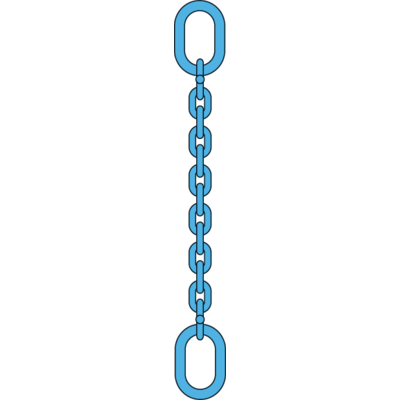

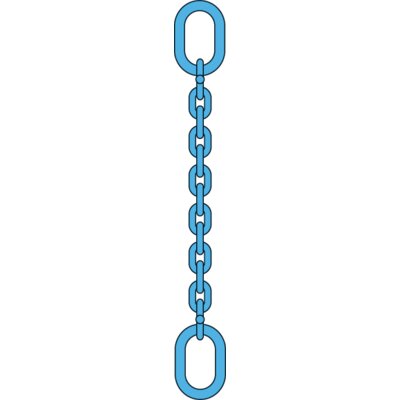

Chain Sing CSY-180 Grade 12

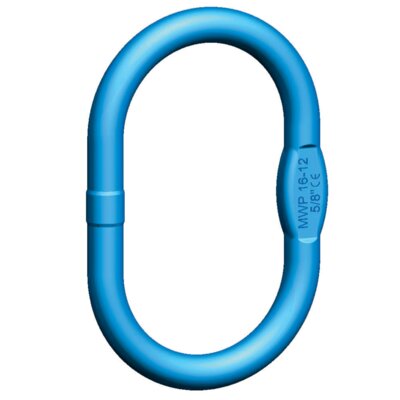

Design: Master link in each end.

Dimension: Ø 7-13 mm.

Material: Alloy steel grade 12.
Marking: According to standard
Standard: EN 818-4

Grade: 12

After click on the “Show table” button, you will see the table with all technical details about the product.

Chainsling Grade 12

EN 818-4, but with higher WLL

Chain Ø	1-part			2-part		3-4-part		Endless

	Straight pull	Choke hitch	Basket hitch	0°−45°	45°−60°	0°−45°	45°−60°	Straight pull	Choke hitch	Basket hitch
mm	Max last (WLL) i ton
7	2,36	1,90	4,72	3,35	2,36	5,00	3,55	4,72	3,75	9,44
8	3,00	2,36	6,00	4,25	3,00	6,30	4,50	6,00	4,75	12,00
10	5,00	4,00	10,00	7,10	5,00	10,60	7,50	10,00	8,00	20,00
13	8,00	6,30	16,00	11,20	8,00	17,00	11,80	16,00	12,50	32,00
Factor (K_L)	1	0,8	2	1,4	1	2,1	1,5	2	1,6	4
When a multi-leg sling is used in a chocker hitch, reduce the values by 20%
