General: Chain for different applications.

Standardi: DIN 763

  • Material: Grade 2.
  • Finish: Chains on reels electro-galvanized, chains on bundles hot-dip galvanized.
  • Warning: Not for lifting!
  • Grade: 2

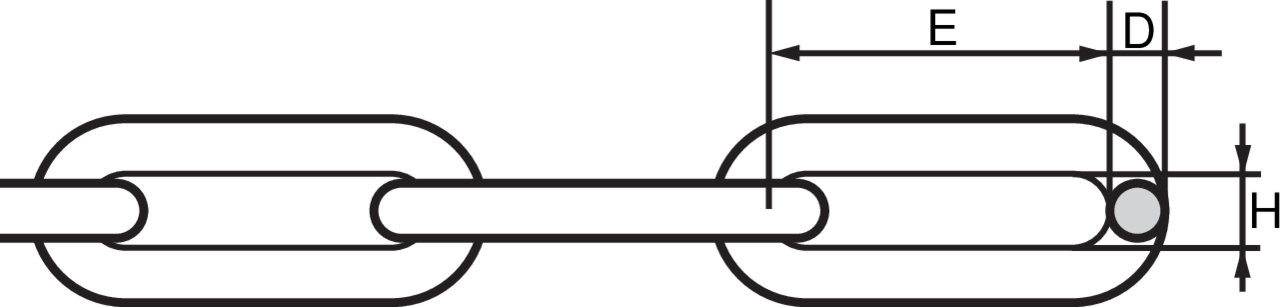

Hlx_225mm
HLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Type Length D
mm
E
mm
H
mm
Weight
kg/m
CAD
11.60763030ER50 3 Reel 50 3 26 6 0.15
11.60763040ER50 4 Reel 50 4 32 8 0.3
11.60763050ER30 5 Reel 30 5 35 10 0.46
11.60763060ER30 6 Reel 30 6 42 12 0.65
11.60763060GB50 6 Bundle 50 6 42 12 0.65
11.60763080ER15 8 Reel 15 8 54 16 1.15
11.60763080GB50 8 Bundle 50 8 54 16 1.15
11.60763100ER15 10 Reel 15 10 65 20 1.82
11.60763100GB50 10 Bundle 50 10 65 20 1.82
11.60763130GB30 13 Bundle 30 13 82 26 3.05
11.60763160GB30 16 Bundle 30 16 100 32 4.5
11.60763200GB30 20 Bundle 30 20 100 35 7.5
