General: Application for submersible pumps and breathers in the water and waste water area.


  • Material: 1.4404 (AISI 316L), 1.4462 (AISI 318LN).
  • Finish: Bright polished.
  • Safety factor: 4:1.
  • Grade: 6
PCWI-Fore
PCWI in use_2
PCWI pic_2
PCWI in use_1

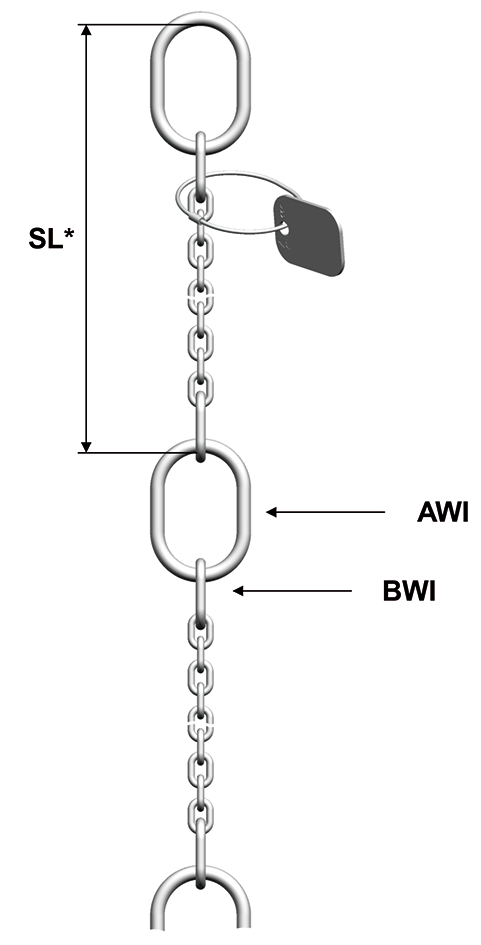

PCWI dwg
Select a row from the table below, then click the add to quote button
WLL
ton
Master link Type
mm
Transition link Chain type Shackle jaw space
mm
Length of master links/end links
mm
Weight SL* AWI
mm
BWI
mm
CAD
0.32 AWI 6 PCWI 4/320 - WOX 4x12-5 18 60 0.39 6x60x35 -
0.4 AWI 8 PCWI 4/400 BWI 5 WOX 4x12 18 60 0.43 8x60x35 5x26x13
0.56 AWI 8 PCWI 5/560 BWI 7 WOX 5x15 25 60 0.62 8x60x35 7x36x16
0.63 AWI 10 PCWI 5/630 BWI 7 WOX 5x15 25 80 0.68 10x80x50 7x36x16
0.85 AWI 10 PCWI 6 BWI 7 WOX 6x18 25 80 0.9 10x80x50 7x36x16
1.25 AWI 13 PCWI 7 BWI 9 WOX 7x21 25 110 1.35 13x110x60 9x44x20
1.6 AWI 13 PCWI 8 BWI 10 WOX 8x24 32 110 1.7 13x110x60 10x44x20
2.5 AWI 16 PCWI 10 BWI 13 WOX 10x30 41 110 2.6 16x110x60 13x54x25
3.5 AWI 18 PCWI 13 BWI 16 WOX 13X39 56 135 4.5 18x135x75 17x70x34
6.3 AWI 22 PCWI 16 BWI 20 WOX 16x48 56 160 8 23x160x90 20x85x40
8 AWI 26 PCWI 20** BWI 22 WOX 20x60 76 180 21 27x180x100 23x115x50
12 AWI 45 PCWI 26** BWI 32 WOX 26x78 76 340 43.2 45x340x180 32x150x70
* SL consisting of 1 x AWI, 2 x BWI, WOX chain in standard length. PCWI 4/200 manufactured without transition links BWI.
** made to order.
