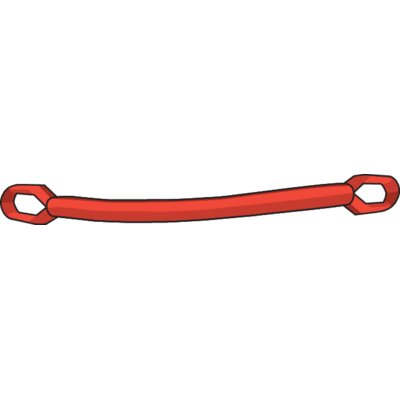

Design: Round sling covered with extra protection sleeve and provided with strengthen eye in each end.
Stretch with working load: 2-3%.

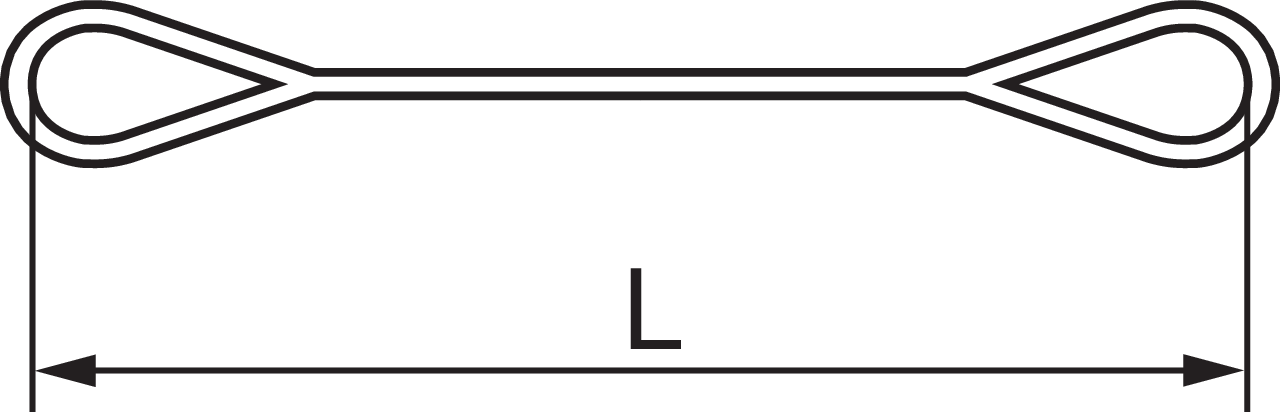

Length tolerance: Nominal length ±2%.
Material:
Polyester. Resistant to most acids but not strong alkalizes.
Marking:
According to standard, The slings are provided with a blue label with manufacturer’s symbol, working load limit (WLL), length, CE marking and a label with handling instruction.
Temperature range:
app. -40° - +100°C.
Standard:
EN 1492-2
Safety factor:
7:1
