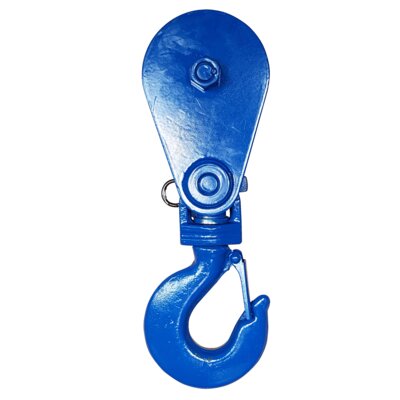

General: Snatch block for steel wire rope with swivel hook

Proof load: 2xWLL

  • Marking: Working load limit (WLL)
  • Finish: Painted

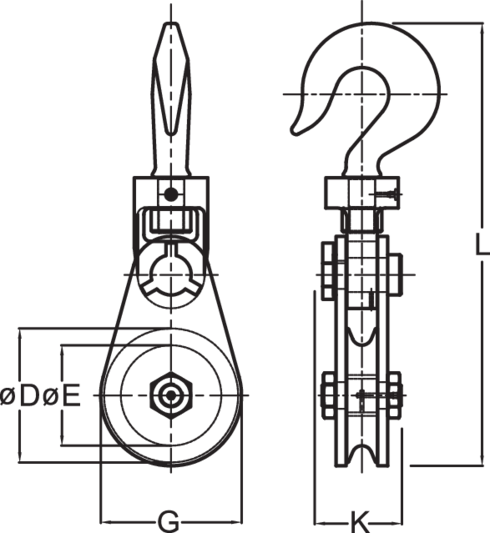

    Snatch_Block_S_Shackle_m
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Diameter
    mm
    Sheave Ø
    mm
    L
    mm
    G
    mm
    K
    mm
    Weight
    kg
    16.15LSBH3 2 7-9 76 292 82 70 4
    16.15LSBH4 4 10-12 114 358 120 70 6
    16.15LSBH6 8 20-22 152 498 160 93 15
    16.15LSBH616 8 16 152 498 160 93 15
    16.15LSBH8 8 20-22 203 549 210 93 20
    16.15LSBH10 12 20-22 254 695 260 114 36
    16.15LSBH815 15 20-22 203 641 210 93 34
    16.15LSBH12 15 24-26 305 797 310 133 54
    16.15LSBH14 22 28-30 357 960 365 140 91
    16.15LSBH16 30 28-30 406 1 027 415 140 107
