Fork terminals are amongst the most commonly used wire end fittings, they are normally attached to pre drilled anchor plates or steel constructions. Also used in combination with toggles, eyes or U-bolts.

  • Material: Stainless steel AISI 316.
  • Marking: logo, wire size and swage depth.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: Polished.
Stainless fork terminal pic

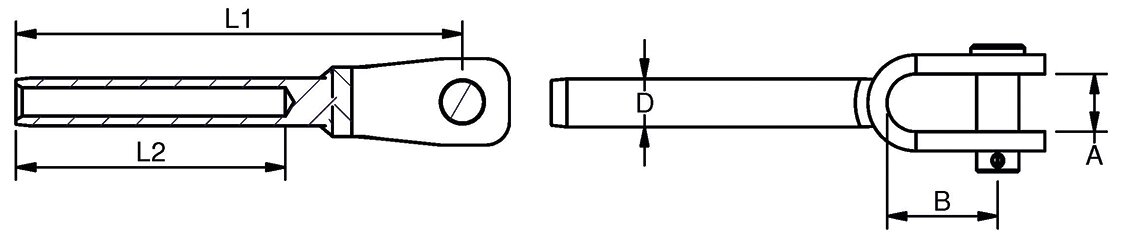

Stainless fork terminal_dwg
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
MBL
t
Pack pcs Pin size Wire Ø
inch
A
mm
B
mm
D
mm
L1
mm
L2
mm
Weight
kg/100pc
CAD
10.07100502 2 0.8 25 5 1/16” 7,5 12 5,5 58 32 2
10.07100525 2.5 0.8 25 5 3/32” 7,5 12 5,5 58 32 2
10.07100503 3 0.8 25 5 1/8” 7,5 12 6,4 67 38 2.3
10.07100603 3 1.3 25 6 1/8” 9,5 13 6,4 68 38 2.8
10.07100504 4 0.8 25 6 5/32” 7,5 12 7,5 71 45 2.7
10.07100604 4 1.5 25 6 5/32” 9,5 13 7,5 73 45 3.4
10.07100804 4 1.7 25 8 5/32” 11 15 7,5 77 45 4.9
10.07100605 5 1.5 25 6 3/16” 9,5 13 9,0 83 51 4.1
10.07100805 5 2.4 10 8 3/16” 11 15 9,0 87 51 5.5
10.07109505 5 2.4 10 9,5 3/16” 12 19 9,0 91 51 7.2
10.07100806 6 3.2 10 8 - 11 15 12,6 99 64 10
10.07109506 6 3.8 10 9,5 - 12 19 12,6 104 64 11.3
10.07101206 6 5.2 10 12 - 14 25 12,6 110 64 17.6
10.07101207 7 6.5 10 12 9/32” 14 25 14,2 119 70 18.1
10.07101208 8 6.5 10 12 5/16” 14 25 16,0 136 83 21.6
10.07101608 8 8.5 10 16 5/16" 17 33 16,0 145 83 25.5
10.07101408 8 8.5 10 ´14 - 18 33 16,0 143 83 32.5
10.07101410 10 9.4 10 14 - 18 32 17,8 151 89 35
10.07101410L 10 9.4 10 14 - 22 30 17,8 149 89 36
10.07101610 10 9.4 5 16 - 17 33 17,8 149 89 36.6
10.07101910 10 9.4 5 19 - 24 48 17,8 168 89 47.7
10.07101612L 12 11.2 5 16 - 22 31 20,0 171 105 60
10.07101612 12 11.2 5 16 - 17 33 20,0 174 105 60
10.07101912 12 11.2 5 19 - 24 48 20,0 189 105 66
10.07101912L 12 11.2 5 19 - 30 47 20,0 187 105 66
10.07101912X* 12 14 5 19 - 24 48 21,4 205 120 75
10.07101914L 14 15 5 19 - 30 47 25,0 221 140 75
10.07102214 14 15 5 22 - 30 57 25,0, 232 140 112.7
10.07102514 14 15 5 25,4 - 30 62 25,0 235 140 125
10.07102516 16 19 5 25,4 - 30 62 28,0 264 160 140
10.07102216 16 19 5 22 - 30 57 28,0 260 160 141
10.07102819 19 27 Bulk 28 - 32 68 34,5 309 200 246
10.07103222 22 34 Bulk 32 - 35 76 40,5 354 230 372
10.07103526 26 45 Bulk 35 - 40 86 46,0 420 280 548
* Note: Terminal OD = 21,4
