Blue Wave
  • Not for lifting

General: Fittings pressed on single steel wire rope.
Design: Polished.

  • Material: Stainless acid proof steel. l AISI 316.
RG_225mm
RG_m_micke2_225mm
Select a row from the table below, then click the add to quote button

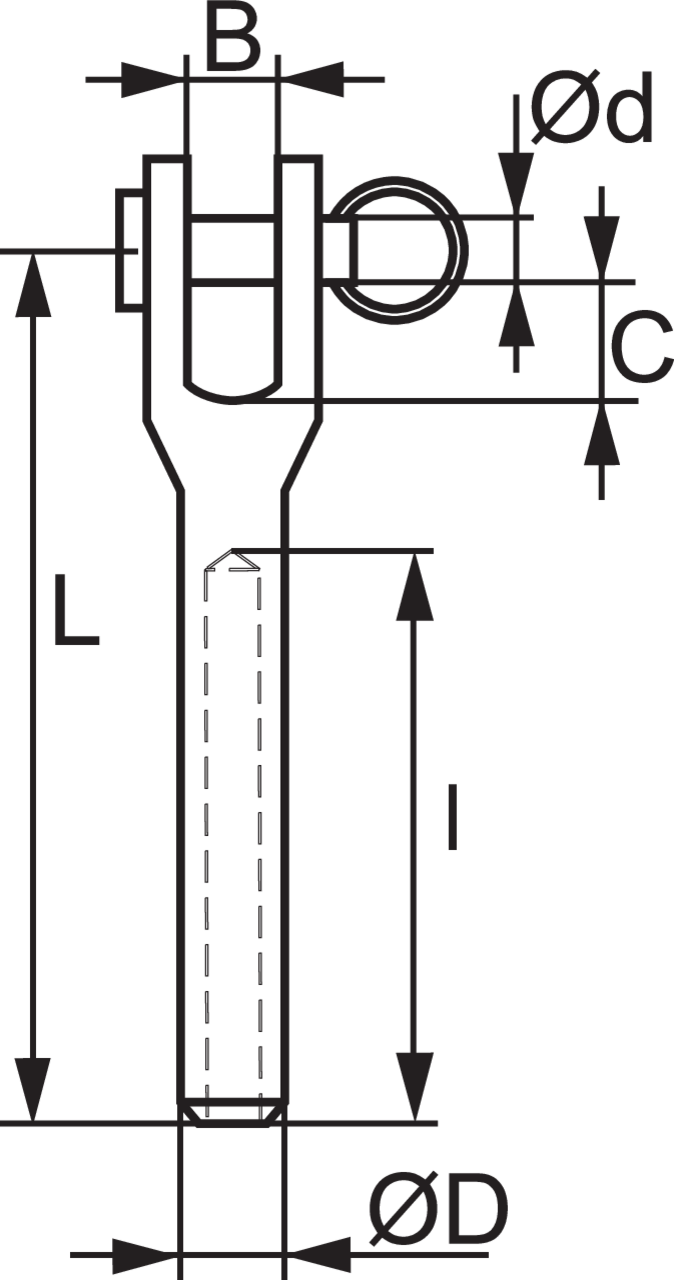

Art No Code Rope √ė (mm) B (mm) C (mm) L (mm) l (mm) d (mm) D (mm) Weight
kg/100m
CAD
10.07100503 CT-3 3 7,5 9,5 67 38 5 6,4 2
10.07100604 CT-4 4 9,5 10 73 45 6 7,5 2.8
10.07100805 CT-5 5 11 11 87 51 8 9,0 4.9
10.07109506 CT-6 6 12 14 104 64 9,5 13 5.5
10.07101207 CT-7 7 14 19 119 70 12 14 11.3
10.07101608 CT-8 8 18 25 145 83 16 16 21.6
10.0710161 CT-10 10 18 26 151 89 16 18 35
10.07101912 CT-12 12 24 43 189 105 19 20 66
