General: Light and compact, fixed constructed gauges for measuring cable tension loads and tautness.
Loadindicator
Loadindicator_measure
Select a row from the table below, then click the add to quote button

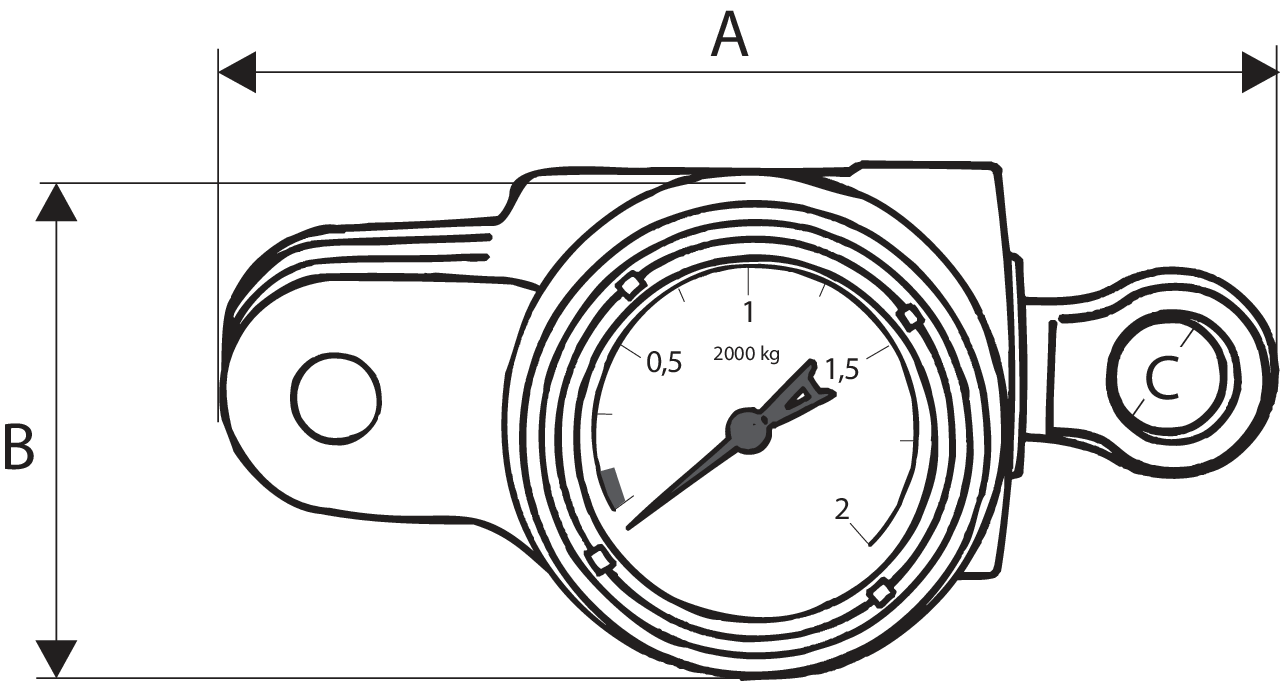

Part Code Code Max load (kg) Graduation kg A
mm
B
mm
C
mm
Weight
kg
CAD
02.99KMA5 KMA05 500 10 110 65 11 0.7
02.99KMA10 KMA10 1,000 20 135 65 16 0.8
02.99KMA20 KMA20 2,000 50 135 65 16 1.2
02.99KMA30 KMA30 3,000 50 150 80 28 2
02.99KMA50 KMA50 5,000 100 260 95 28 3
