General:
- For lifting and transportation of loads up to 2000 kg. Manually actuated magnets for individual use.
- Powerful Neodymium magnets ensure a maximum lifting capacity on uneven and rough contact surfaces
- SAV-BUX lifting magnets are individually tested and delivered with a test certificate.
- Break-away force is at least 3 times the nominal lifting capacity.
- The lifting capacity for round materials is at least 50% of the lifting capacity for flat materials
- Smoothly turning lever with safety lock
- Compact, robust and reliable

Applications:

- Loading and unloading of machine tools
- Handling of bars and profiles in the warehouse
- Handling of plates, blocks, bars, pipes and profiles in the workshop

    • Safety factor: 3:1

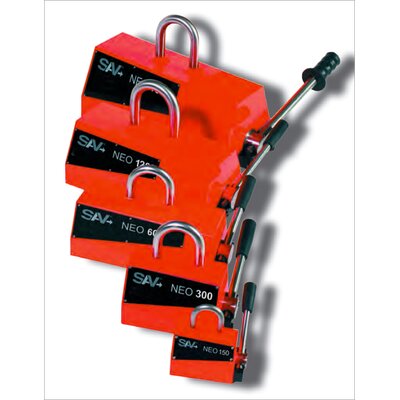

    Product Image 1
    Product Image 2
    Select a row from the table below, then click the add to quote button
    Part Code WLL Model Length
    mm
    Width
    mm
    nominal lifting capacity (flat material) nominal lifting capacity (round material) minimum thickness
    mm
    round material diameter ø min / max height to the crane hook
    mm
    Weight
    kg
    16.4153101150SAV 0,15 NEO 150 93 60 150 65 2 40 - 100 110 2,6
    16.4153101300SAV 0,3 NEO 300 152 100 300 150 4 60 - 200 164 10
    16.4153101600SAV 0,6 NEO 600 246 120 600 300 6 65 - 270 164 20
    16.41531011200SAV 1,2 NEO 1200 306 146 1 200 600 10 100 - 300 216 40
    16.41531012000SAV 2 NEO 2000 480 165 2 000 1 000 15 150 - 350 253 90

    Note: WLL is for flat materials
