Vertical lifting clamp TNMK/STNMK/TNMK-A - Non marking. Clamp for vertical lifting and transporting of all plates and structures without marking, scratching and or damaging the material surface. Perfect for lifting materials such as (stainless) steel, aluminum, nature stone, composite, painted materials, wood, glass, plastic, etc .

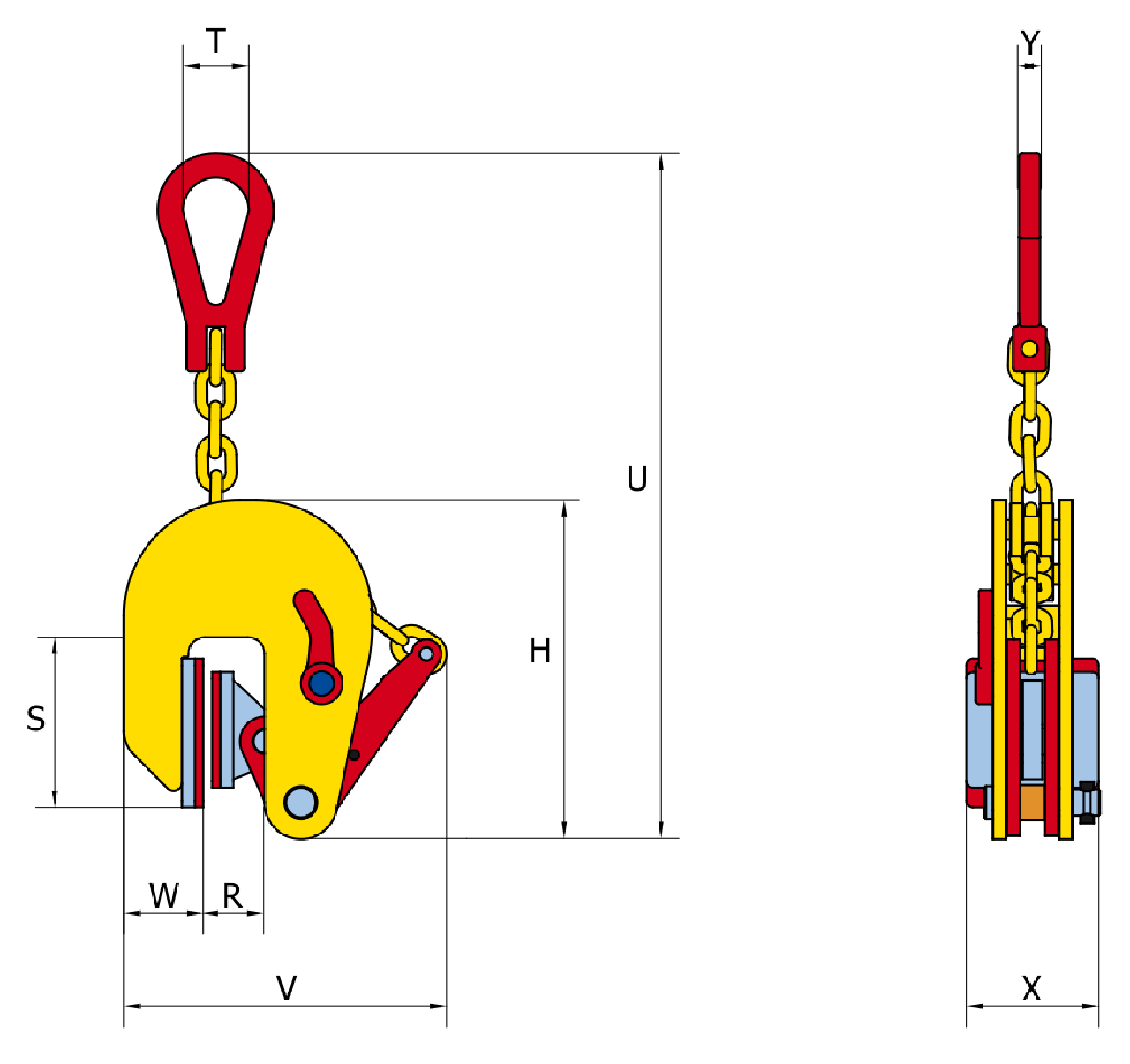

Model TNMK: Standard clamp
Model STNMK: Clamp with enlarged jaw opening.

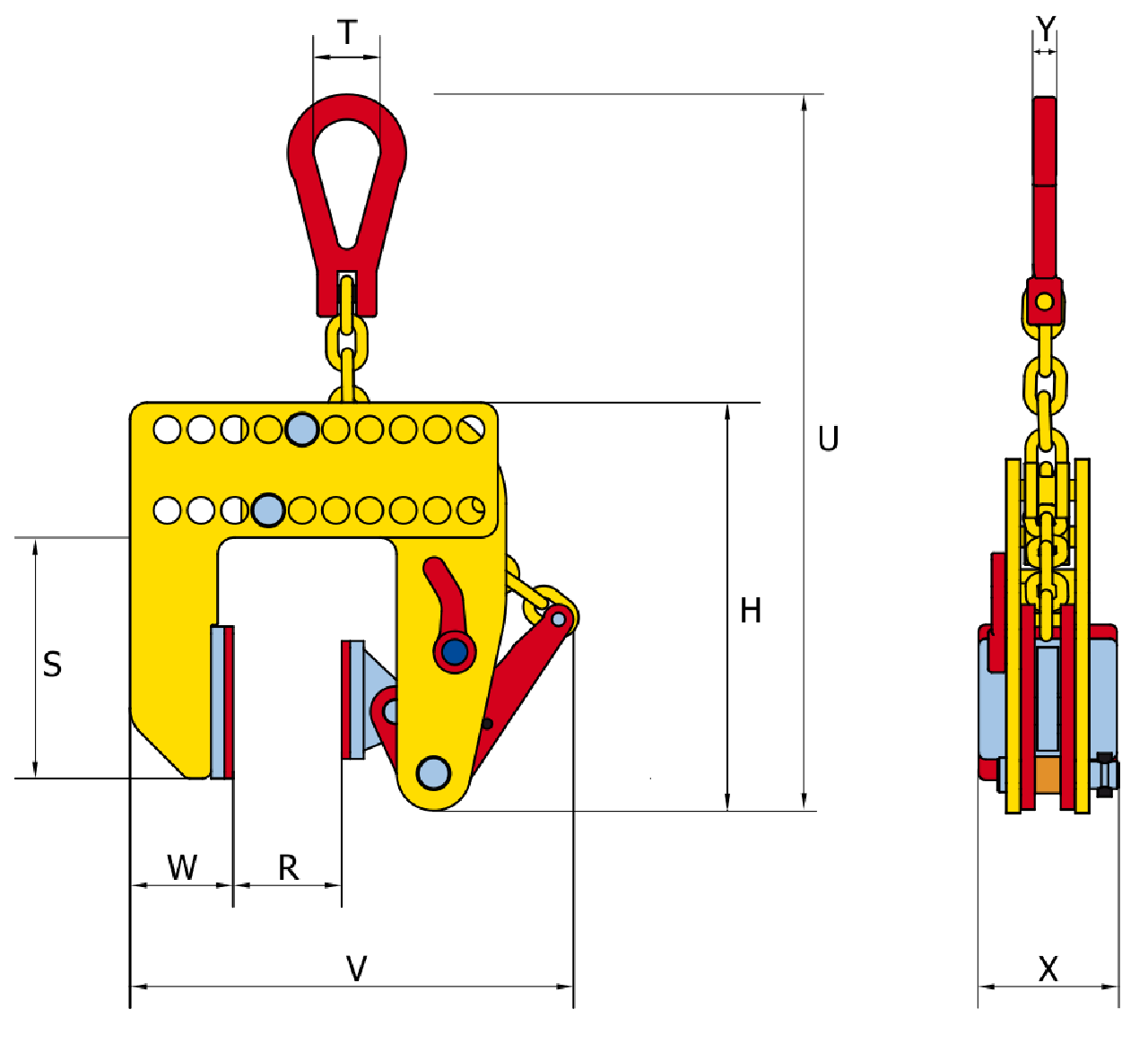

Model TNMK-A: with adjustable extra large jaw opening: 0 to 180 mm (A) (adjustable steps of 20 mm)

Features:

  • With 2 special synthetic anti-friction pads to guarantee non-marking
  • Supplied with chain lifting shackle for flexible lifting
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when non-marking lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight, maintenance-friendly, heavy duty body
  • No minimal WLL needed.
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 10°C to + 60°C.
  • Standard: EN 13155
  • Note: The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm2).
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw opening
mm
H
mm
S
mm
T
mm
U
mm
V
mm
W
mm
X
mm
Y
mm
Weight
kg
CAD
16.01862135 0.5 STNMK 0.5 17-37 205 102 40 462 241 48 80 14 6
16.01862035 0.5 TNMK 0.5 0-20 205 102 40 462 224 48 80 14 6
16.01862005 0.5 TNMK-A 0.5 0-180 242 143 40 410 235-395 61 80 14 10
16.01862010 1 TNMK 1 0-30 232 105 40 470 282 46 80 14 6.5
16.01862037 1.5 TNMK 1.5 0-40 232 105 40 470 282 46 80 14 6.5
16.01862038 2 TNMK 2 0-50 362 124 50 704 408 63 80 18 15
16.01862039 3 TNMK 3 0-60 362 124 50 704 408 63 80 18 15.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
