General: The YIII-models are equipped with a overload device to prevent overwinding. A top quality lever hoist with solid and compact design and special rust-resistant coating for extrem environment like off-shore and mining industry. The brake mechanism and the gears are completely enclosed and make the hoist highly reliable and endurable and also lower maintenance. It is easy to adjust up and down operations and the length of the chain with the rubber coated operation handle. Hook with safety latch.

  • Material: Chain and hook, alloy steel grade 10.
  • Marking: WLL, code and CE marking.
  • Finish: Painted.
  • Safety factor: 5:1
Spak_svart_new_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Load chain Ø
mm
Min Headroom
mm

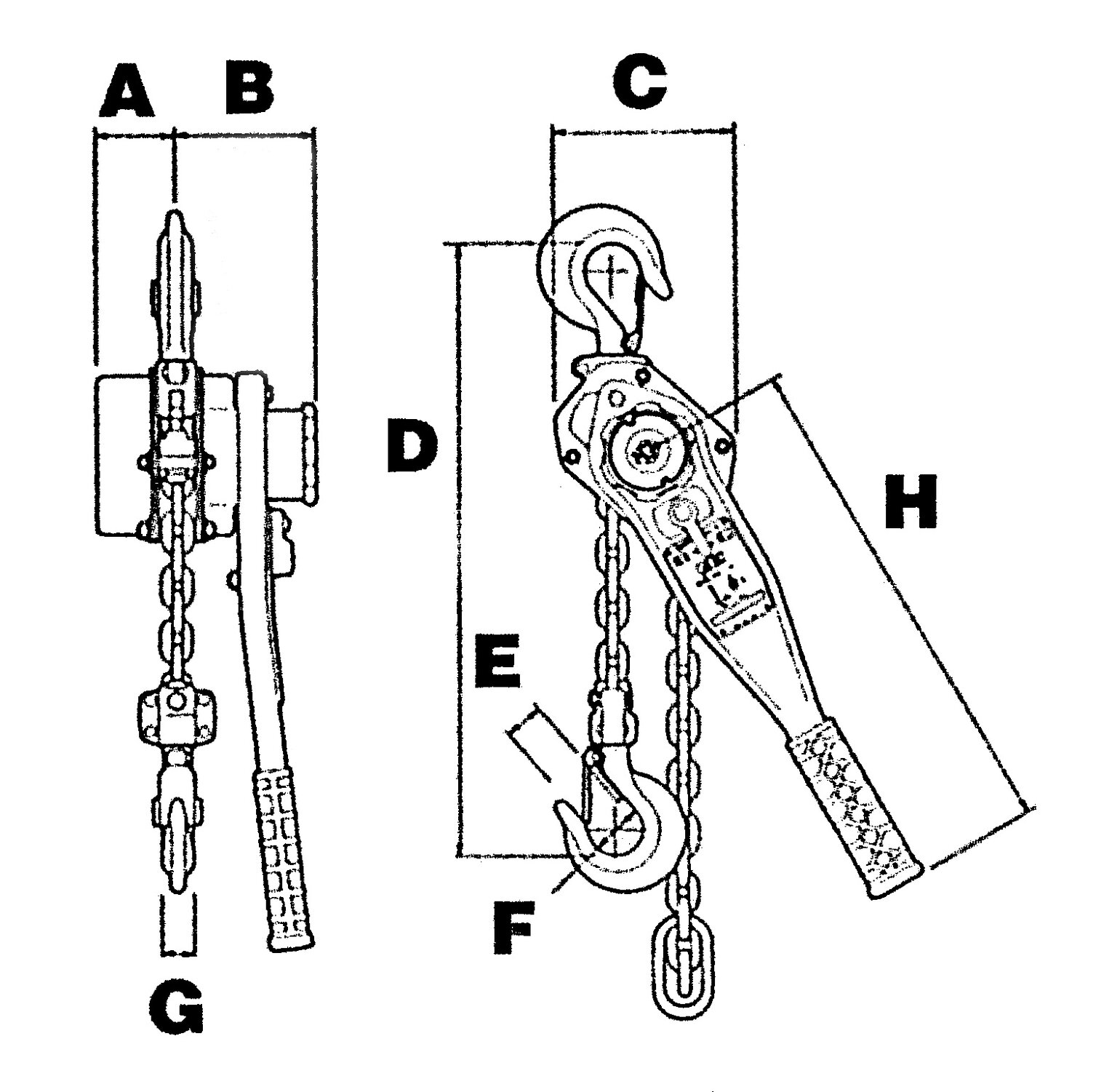

Hand effort to lift full load (kg) Std. lift m Number of falls A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
CAD
16.20YIII0050015 YIII-50 0.5 5 265 34 1.5 1 26.5 83 82 265 23 36 13 284 3.6
16.20YIII0080015 YIII-80 0.8 5.6 294 30 1.5 1 52.5 98.5 122 294 23 36 15 268 6.2
16.20YIII0100015 YIII-100 1 5.6 312 37 1.5 1 52.5 98.5 122 312 28 43 16 268 6.4
16.20YIII0100015 YIII-100 1 5.6 312 37 1.5 1 52.5 98.5 122 312 28 43 16 268 6.4
16.20YIII0160015 ÝIII-160 1.6 7.2 355 30 1.5 1 62.5 105 140 355 29 43 21 385 9.5
16.20YIII0315015 YIII-320 3.15 9 411 37 1.5 1 83 110.5 176 411 36 53 28 385 15.5
16.20YIII0630015 YIII-630 6.3 9 564 38 1.5 2 83 110.5 235 564 47 70 34 385 26.5
16.20YIII0900015 YIII-900 9 9 689 39 1.5 3 83 110.5 300 689 74 85 47.5 385 42
Other range of lift-height available upon request.
