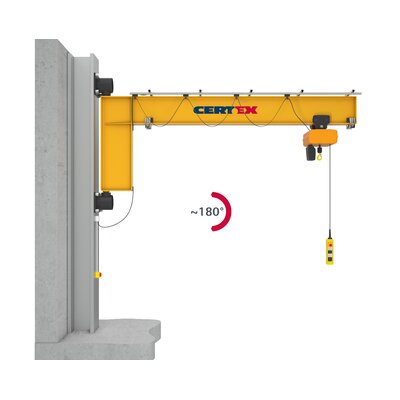

Wall mounted slewing jib crane for indoor/outdoor use.

The Vetter GESELLE slewing jib crane is perfect for workplaces where the floor must be free from obstacles and it can be used for feeding machines, repair works etc. The compact design makes the crane suitable for small and narrow areas. It has a capacity up to 10.000 kg.
Jib design: Low-profile.

Advantages:

  • Compact design
  • Large effective lifting height
  • Electrical slewing gear for comfortable/smooth slewing
  • Outdoor use is possible
  • Broad range of fastening options
  • Suitable for explosion protection according to ATEX (option)

Contact our crane department for more information.

  • Marking: According to standard, CE-marked
  • Standard: EN 13001
Wall-mounted Jib Crane CERTEX GESELLE GN
Select a row from the table below, then click the add to quote button
I'd like to have more information
GESELLE GN
Outreach (m) 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10 10.5 11 11.5 12
Capacity (kg)
500             x x x x x x x x x x x x x x x
1000       x x x x x x x x x x x x x x x x x x
1600   x x x x x x x x x x x x x x x x x x x x
2000 x x x x x x x x x x x x x x x x x x x x x
2500 x x x x x x x x x x x x x x x x x x x
3200 x x x x x x x x x x x x x x x x
4000 x x x x x x x x x x x x x x
5000 x x x x x x x x x x x x
6300 x x x x x x x x x
8000 x x x x x x
10000 x x x x x
