Liftket

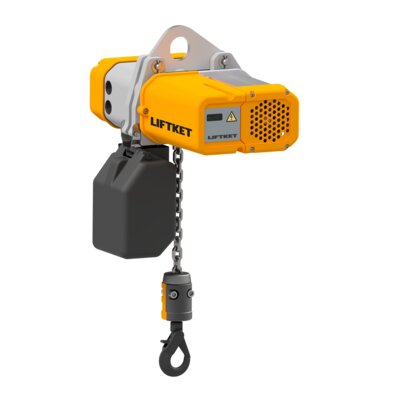

1st electronically controlled chain hoist Liftket STAR VFD is developed for almost every lifting application and is convincing all along the line.

Features:

  • load-dependent, infinitely variable speed control from 2 to 24 m/min
  • one hoist for a worldwide use (380 – 480V / 50 and 60Hz)
  • the hoists can be operated with up to 200 % of the nominal speed by moving without load
  • first chain hoist with integrated display for displaying the following values:
    - Remaining useful life
    - operating hours
    - full load hours
    - number of brake clearances
    - inverter temperature
  • decreases the maintenance effort and costs
  • with hoisting limit switches
  • with overheating protection for lifting motor and VFD
  • UL solutions available
  • protection class IP55, insulation class F
  • all mechanical accessories and components are fully compatible (e.g. Chain bags, trolleys, special chains, variations, etc.)

Trolleys/Boogies: Manual or electric trolleys in various designs for each steel section girder.

  • Marking: CE-marked
  • Note: Standard version delivered with lifting eye (connection between crane and trolley). Alternatively, comes with suspension hook. Standard stock hoist with 6 m lifting height.
    Elkædetalje 125 - 2.000 kg VFD
    Elkædetalje_dwg
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Chain falls Duty rating % ED Class ISO/FEM Lifting speed at 50 Hz
    m/min
    Power of lifting motor at 50 Hz kW Load chain
    mm
    A
    mm
    B
    mm
    C
    mm
    G
    mm
    G2
    mm
    øN
    mm
    J
    mm
    Weight
    kg
    13.05VFD0125124-06 125/1-24 V 0,125 1 25 M6 2-24 3 5,2x15 266 232 274 388 436 35 20 33
    13.05VFD0250124-06 250/1-24 V 0,25 1 25 M6 2-24 3 5,2x15 266 232 274 388 436 35 20 33
    13.05VFD0500124-06 500/1-18 V 0,5 1 25 M3 2-24 3 5,2x15 266 232 274 388 436 35 20 38
    13.05VFD1000112-06 1000/1-6 V 1 1 25 M5 0,6-12 3 7,2x21 266 232 274 436 489 35 22 36
    13.05VFD1000212-06 1000/2-9 V 1 2 25 M3 1-12 3 7,2x21 266 232 274 413 460 35 22 41
    13.05VFD2000206-06 2000/2-3 V 2 2 25 M5 0,3-6 3 7,2x21 359 291 410 611 678 50 30 41

    Weight with 3 m lift chain
    Part Code = last two digits indicates the lifting height: 06 = 6 m lifting height
