pewag

stamped and suitable for both I- and II-leg assemblies and wire
rope slings (similar to DIN 3088- 1989). The master link may also
be used in VWI four-leg assemblies and as an end link.
Its dimensions are similar to DIN 5688‑1 and it is tested at 100 %
of its load capacity.
A particular bonus is the higher resistance to acids and caustics
compared to the standard loading rings G8, G10 and G12.

The AWI Master link is particularly suited for use in water and
wastewater applications. It can also be used in connection with
chemicals and food products; however, restrictions will apply.

  • Material: 1.4404 (AISI 316L), 1.4462 (AISI 318LN).
  • Marking: CE-marked
  • Finish: Pickled and blasted.
  • Safety factor: 4:1
  • Grade: 6
AWI-G6
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Usable with sling hooks
up to DIN 15401 No.
For chain Ø 1-leg
mm
For chain Ø 2-leg
mm

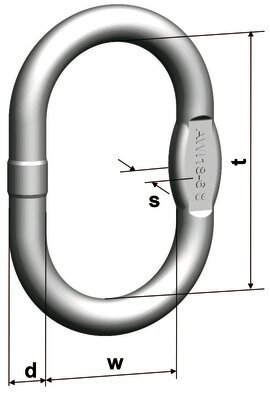

Double hook DIN 15402 Nr. d
mm
s
mm
w
mm
Weight
kg
CAD
11.0450342 AWI 8-6 0.56 0.5 4 4 8 35 0.08
11.0450344 AWI 10-6 0.85 1.6 5 5 2.5 10 50 0.16
11.0450346 AWI 13-6 1.6 2.5 6/7/8 6 4 13 10 60 0.34
11.0450348 AWI 16-6 2.6 2.5 10 7/8 4 16 14 60 0.53
11.0450350 AWI 18-6 3.5 5 - 10 6 18 14 75 0.83
11.0450352 AWI 22-6 6.3 6 13/16 13 8 23 17 90 1.55
11.0450354 AWI 26-6 8.9 8 20 16 10 27 20 100 2.46
11.0498994 AWI 45* 12 25 26 - 32 45 180 12.82
11.0450356 AWI 32-6 13.2 10 - 20 12 32 26 110 3.86
11.0450358 AWI 36-6 14.7 16 - - 20 36 29 140 6.22
* AWI 45 is grade 5











Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
