KWB

General: For 3 and 4-leg slings with shortening element.

  • Temperature range: -40ºC to 200ºC.
  • Safety factor: 4:1.
  • Grade: 12
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Code WLL
ton
chain Ø
mm
Chain Ø
inch

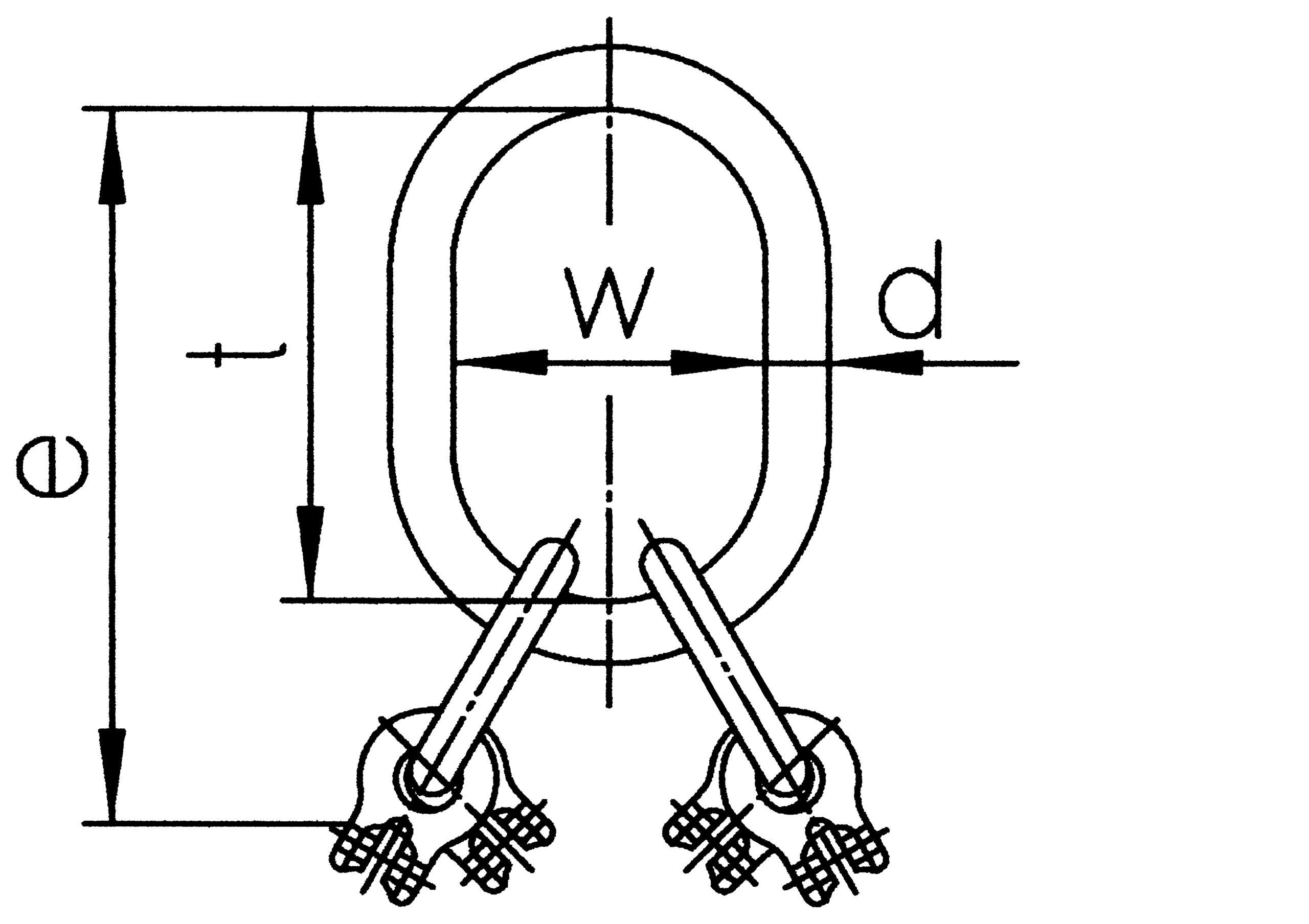

can be usedto singlehook acc.to DIN15401no. WLL0_45 WLL 45-60°
ton
d
mm
t
mm
w e
mm
Weight
kg
CAD
GTKR/SUN 4-7 5 7 9/32 10 5 Ton 3,55 27 190 110 287 4.25
GTKR/SUN 4-8 6.3 8 5/16 10 6.3 Ton 4,5 27 190 110 287 4.25
GTKR/SUN 4-10 10.6 10 3/8 12 10.6 Ton 7,5 30 190 110 326 7.34
GTKR/SUN 4-13 17 13 1/2 12 17 Ton 11,8 38 275 150 479 14.4
GTKR/SUN 4-16 25.6 16 5/8 12 25.6 Ton 18,3 38 275 150 503 19.48
