Lifting point for welding onto machine parts or vehicle bodies. Ideal for hanging of lifting and lashing parts. Due to the integreated spring, the ring will be kept in each requested position.
The instructions according to DIN EN ISO 14341 are valid for the welding. The welding may only be carried out by a welding operator with a valid qualification according to EN 287-1 or EN ISO 9606-1.
The lifting points will be packed individually and together with a user manual and welding instructions.

Permissible usage
Load capacity acc. to the inspection certificate respectively table of WLL in the mentioned directions of pull (see picture 1 and 2).

Non permissible usage
Make sure when choosing the assembly that improper load can not arise e.g. if:

  • The direction of pull is obstructed
  • Direction of pull is not in the foreseen area
  • Loading ring rests against edges and load
  • Material: Alloy steel grade 10.
  • Marking: WLL and the load capacity is clearly marked on the welding pad.
  • Finish: Painted.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

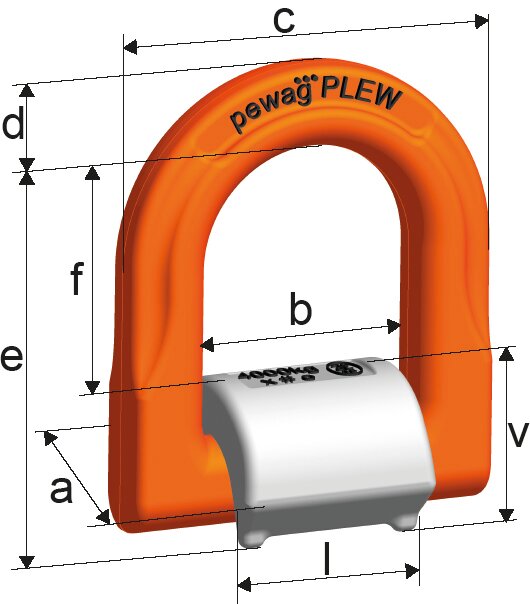

Part Code Code WLL
ton
A
mm
B
mm
C
mm
D
mm
e
mm
f
mm
h
mm
l
mm
Weight
kg
CAD
11.4257631 PLEW 1,5 t 1.5 32 38 65 14 65 40 25 35 0.32
11.4257643 PLEW 2,5 t 2.5 37 44 75 16 76 47 28 41 0.5
11.4245122 PLEW 4 t 4 43 48 84 18 83 51 32 45 0.75
11.4257647 PLEW 6,7 t 6.7 58 60 107 24 108 64 44 56 1.7
11.4257635 PLEW 10 t 10 69 66 126 27 123 69 54 61 2.8
11.4257639 PLEW 19 t 19 92 95 171 38 168 100 68 89 6.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Method of lifting

Number of legs
1
1
2
2
2
2
3+4
3+4
2
3+4
Angle of inclination
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
asymm.
asymm.
Code
WLL tons









PLEW 1,5 t
2,5
1,5
5
3
2,1
1,5
3,1
2,2
1,5
1,5
PLEW 2,5 t
4
2,5
8
5
3,5
2,5
5,3
3,7
2,,5
2,5
PLEW 4 t
6
4
12
8
5,6
4
8,4
6
4
4
PLEW 6,7 t
10
6,7
20
13,4
9,4
6,7
14,2
10
6,7
6,7
PLEW 10 t
15
10
30
20
14,1
10
21,2
15
10
10
PLEW 19 t
25
19
50
38
26,8
19
40,3
28,5
19
19
