• Safety factor : MBL equals 5 x WLL

• Certification : at no extra charge this product can be supplied with a works certificate,
a 3.1 material certificate and/or EC Declaration of Conformity
  • Material: alloy steel, grade 8, quenched and tempered
  • Finish: painted red
  • Safety factor: 5:1
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
WLL
ton
diameter base b
mm
width c
mm
thickness base e
mm
thickness h
mm

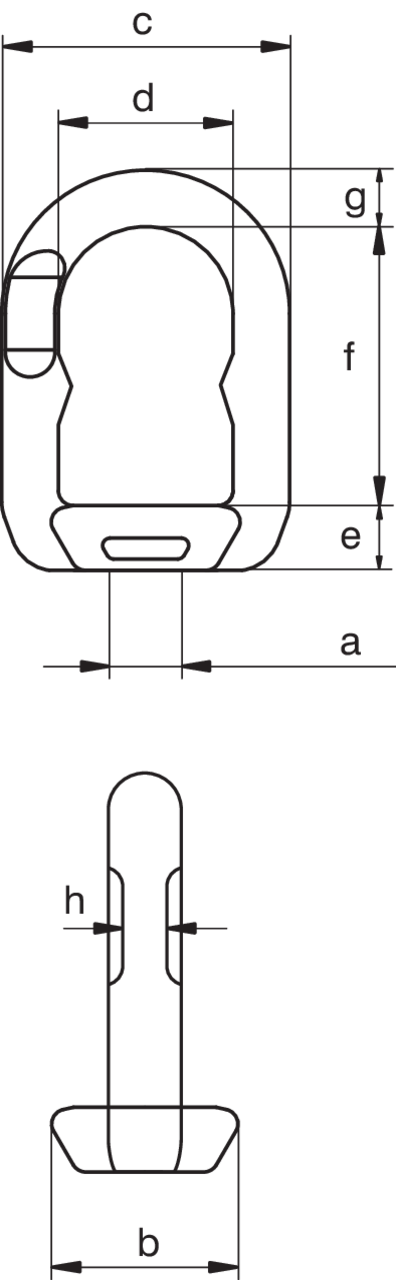

Thread a width inside d length inside f Diameter g Weight
kg
CAD
11.40EL6R 11 0.2 31 51 14 6 M 6 x 1.00 30 44 11 0.15
11.40EL8R 11 0.4 31 51 14 6 M 8 x 1.25 30 44 11 0.15
11.40EL10R 11 0.7 31 51 14 6 M10 x 1.50 30 44 11 0.15
11.40EL12R 12 1 39 56 15 6 M12 x 1.75 32 48 12 0.23
11.40EL14R 12 1.2 39 56 15 6 M14 x 2.00 32 48 12 0.23
11.40EL16R 14 1.5 44 65 16 8 M16 x 2.00 37 60 14 0.4
11.40EL18R 14 2 44 65 16 8 M18 x 2.50 37 60 14 0.4
11.40EL20R 14 2.5 44 65 16 8 M20 x 2.50 37 60 14 0.4
11.40EL22R 16 3 52 80 21 11 M22 x 2.50 48 75 16 0.63
11.40EL24R 16 4 52 80 21 11 M24 x 3.00 48 75 16 0.63
11.40EL27R 16 5 52 80 21 11 M27 x 3.00 48 75 16 0.63
11.40EL30R 21 6 66 96 25 14 M30 x 3.50 58 88 21 1.11
11.40EL33R 21 7 66 96 25 14 M33 x 3.50 58 88 21 1.11
11.40EL36R 25 8 84 121 39 17 M36 x 4.00 73 100 25 2.22
11.40EL39R 25 9 84 121 39 17 M39 x 4.00 73 100 25 2.22
11.40EL42R 25 10 84 121 39 17 M42 x 4.50 73 100 25 2.22
11.40EL45R 25 15 90 132 42 22 M45 x 4.50 82 121 25 2.73
11.40EL48R 25 18 90 132 42 22 M48 x 5.00 82 121 25 2.73
