This hook is at its best when used with the Connex system.
It closes and locks automatically and cannot be opened while under load. The large swivel casing opens up an even wider range of application options and the larger jaw opening compared to HSW means that it may be used more flexibly.

  • Material: High duty grade 10.
  • Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
  • Finish: Orange powder coated.
  • Standard: EN 1677-3
  • Note: Not for welded system.
  • Safety factor: 4:1
  • Grade: 10
ZE_WLHW NEU 07
Select a row from the table below, then click the add to quote button

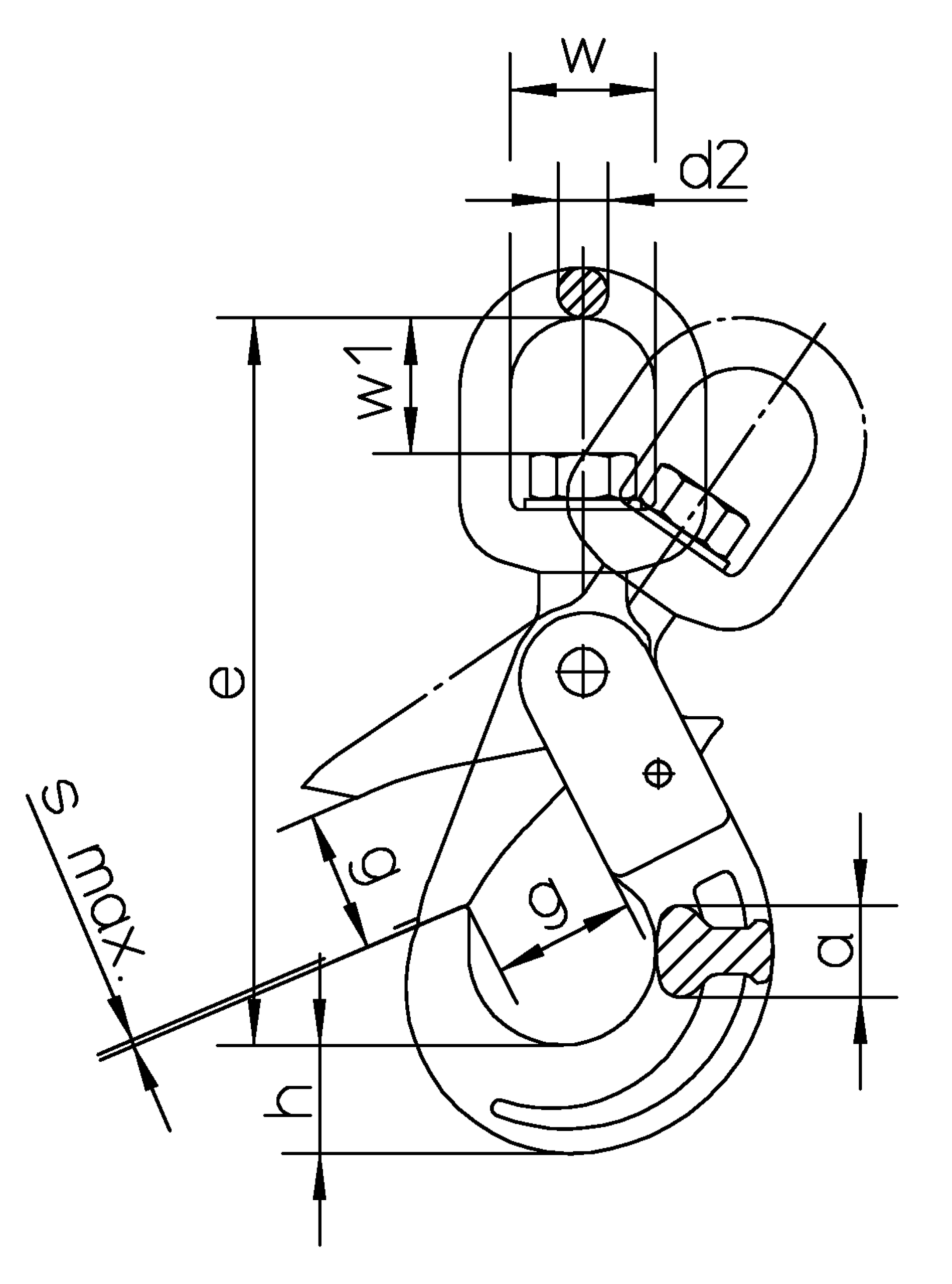

Part Code Code WLL
ton
a
mm
d2
mm
g
mm
e
mm
h
mm
w
mm
w1
mm
Weight
kg
CAD
11.1645305 WLHW 5/6 1.4 17 12 28 161 20 35 36 1.2
11.1665753 WLHW 7/8 2.5 20 12 34 181 26 35 35 1.54
11.1665749 WLHW 10 4 29 16 45 218 30 41 40 2.14
11.1665750 WLHW 13 6.7 35 20 52 269 40 49 47 4.42
11.1665751 WLHW 16 10 41 24 60 319 50 60 60 7.34
