pewag

General: Hook with eye, with forged and galvanised safety catch.

  • Material: Alloy steel grade 12.
  • Marking: According to standard, Pewag or PW, winner pro or 12, H16, CE, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-2
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 12
LH_hook

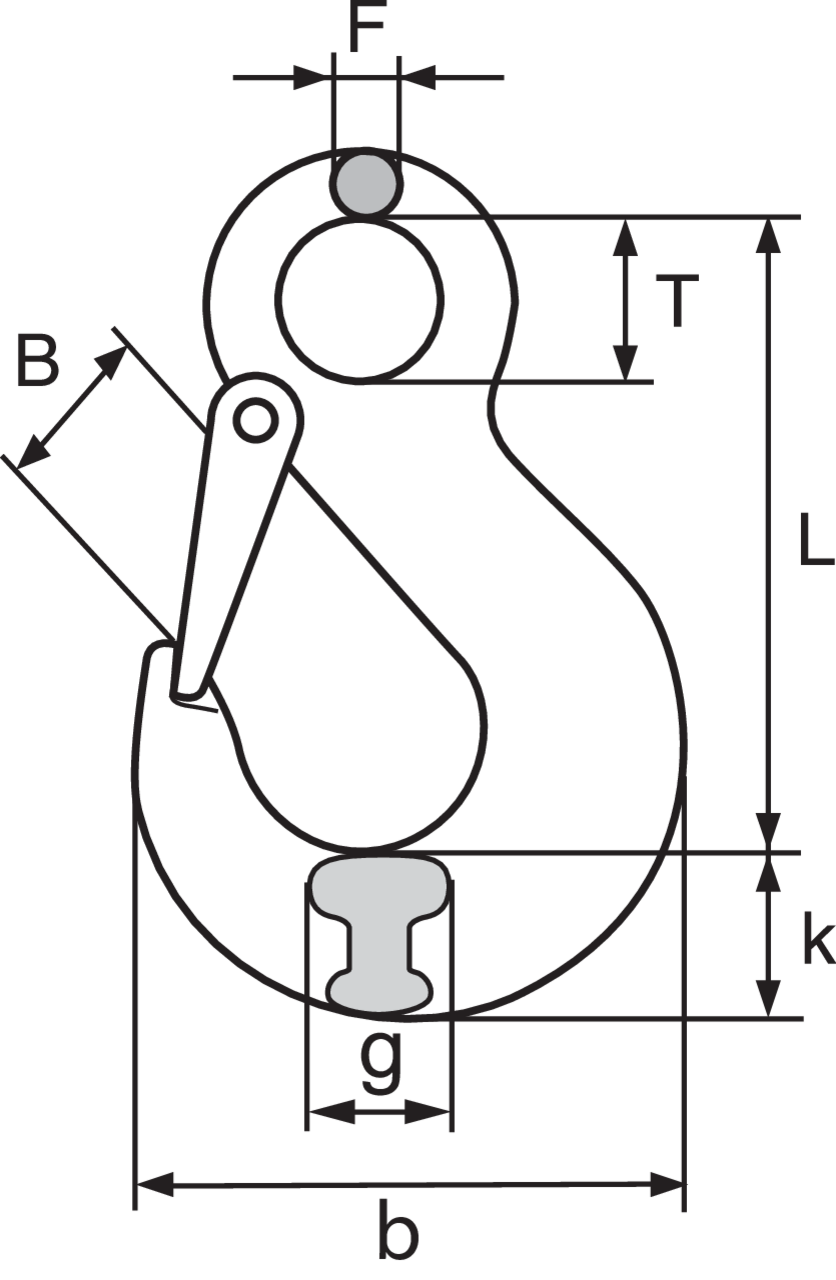

HSWP dwg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
LC (kN) B
mm
F
mm
L
mm
T
mm
g (mm) k (mm) Weight
kg
CAD
11.1288001 HSWP 7/8 3 60 88 11 106 25 19 27 0.65
11.1288003 HSWP 10 5 100 108 16 131 34 26 33 1.29
11.1288005 HSWP 13 8 160 132 19 164 43 33 43 2.43

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
