WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: According to standard, Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-1
  • Safety factor: 4:1.
  • Grade: 10
kwb_HKS_S_225mm
kwb_HKS_S_m_225mm[New2]
Select a row from the table below, then click the add to quote button

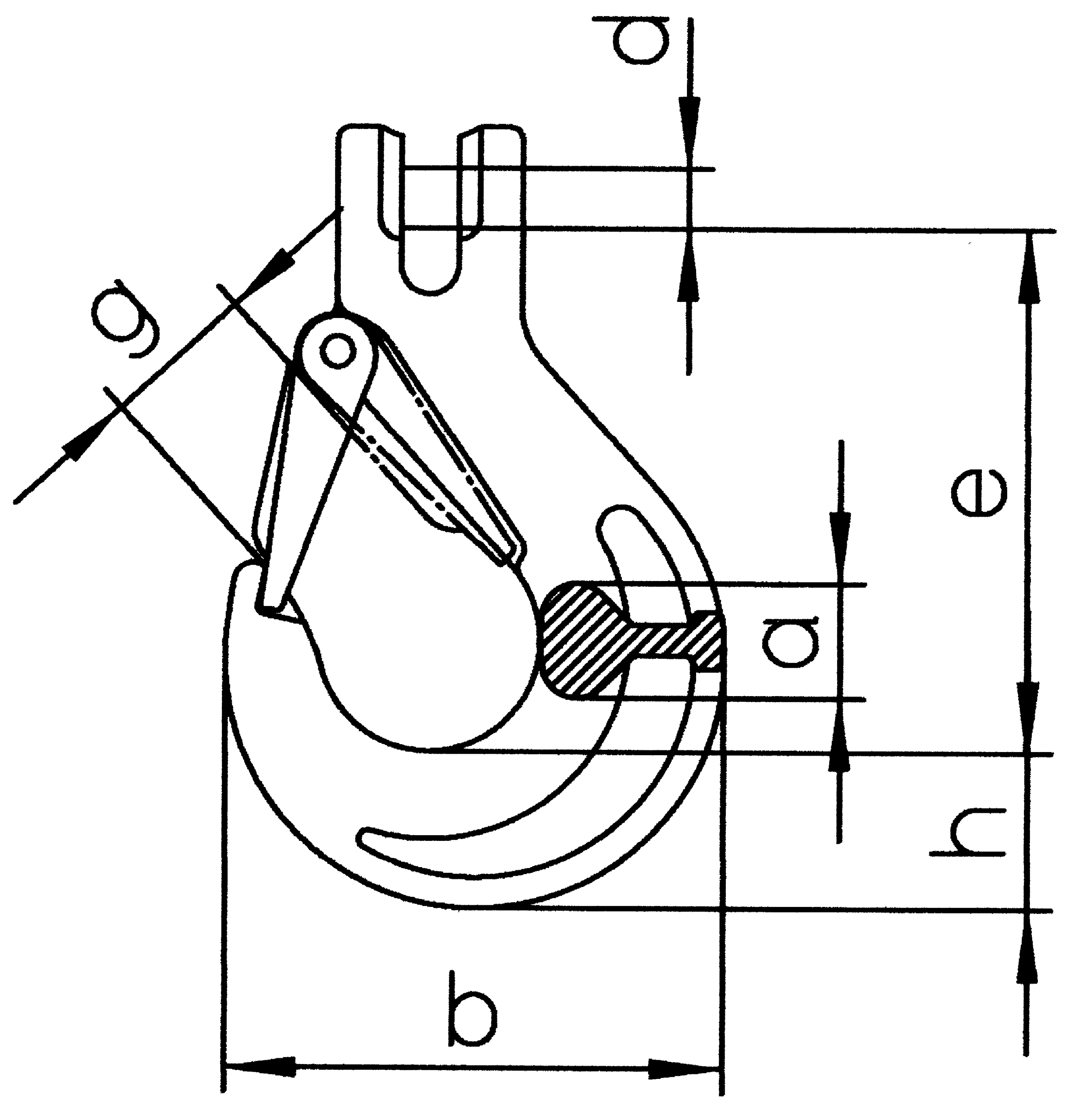

Part Code Code WLL
ton
g1
mm
For chain gr 10 √ė
mm
A
mm
B
mm
D
mm
e
mm
h
mm
Weight
kg
CAD
11.1150416 HKS/S-6 1.4 19 6 15 66 7,4 69 20 0.2
11.1169968 HKS/S-7 1.9 26 7 19 90 9 95 28 0.6
11.1150418 HKS/S-8 2.5 27 8 19 90 10 94,5 28 0.6
11.1150419 HKS/S-10 4 31 10 25 108 12,5 109 33 1.1
11.115042 HKS/S-13 6.7 39 13 34 131 16 136 40 2
11.1150421 HKS/S-16 10 45 16 37 153 20 155 49 3.5
11.1191481 HKS/S-19/20 16 53 19-20 46 177 24 183,5 53 5
11.116997 HKS/S-22 19 62 22 50 196 27 213,5 62 12.1
