This eye sling hook is ideally suited for the pewag winner pro Connex system. It is universally usable and comes with a forged and galvanised safety catch that locks into the tip of the hook, thereby providing excellent protection against lateral shifts. The safety catch with a latch, the safety pin and the stainless spring are available as a spare parts set for each hook and easy and quick to replace by a competent person.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-2
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 12
LH_hook
Select a row from the table below, then click the add to quote button

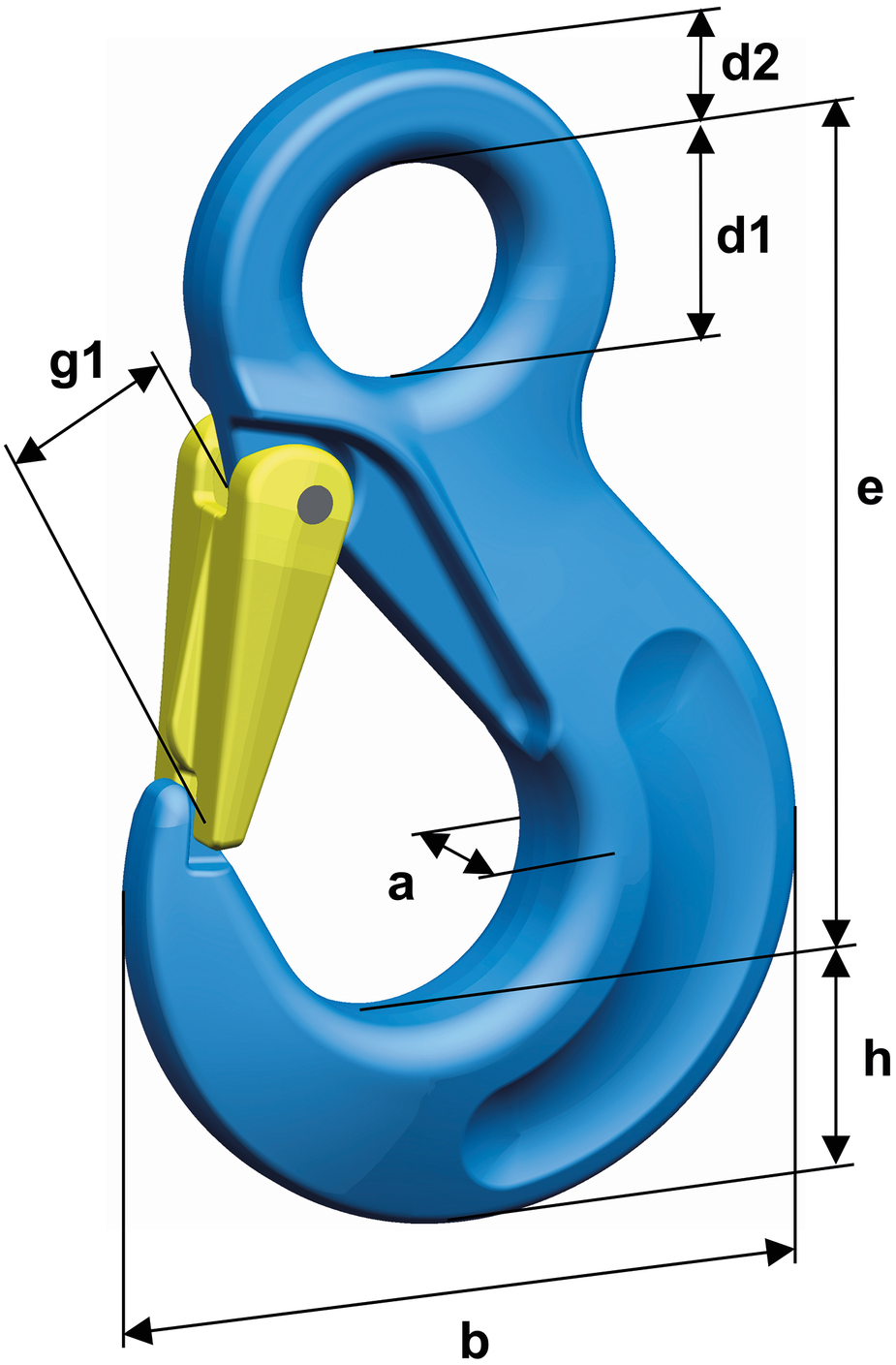

Part Code Code WLL
ton
LC
kN
a
mm
b
mm
d1
mm
d2
mm
e
mm
g1
mm
h
mm
Weight
kg
CAD
11.1288001 HSWP 7/8 3 60 19 88 25 11 106 26 27 0.65
11.1288003 HSWP 10 5 100 26 108 34 16 131 31 33 1.29
11.1288005 HSWP 13 8 160 33 132 43 19 164 39 43 2.43

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
