Crosby


Proof: 2,5 x WLL


  • Material: Alloy steel grade 10. Not to be heat-treated.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
Eye Cradle Grab hook Platinum A1348

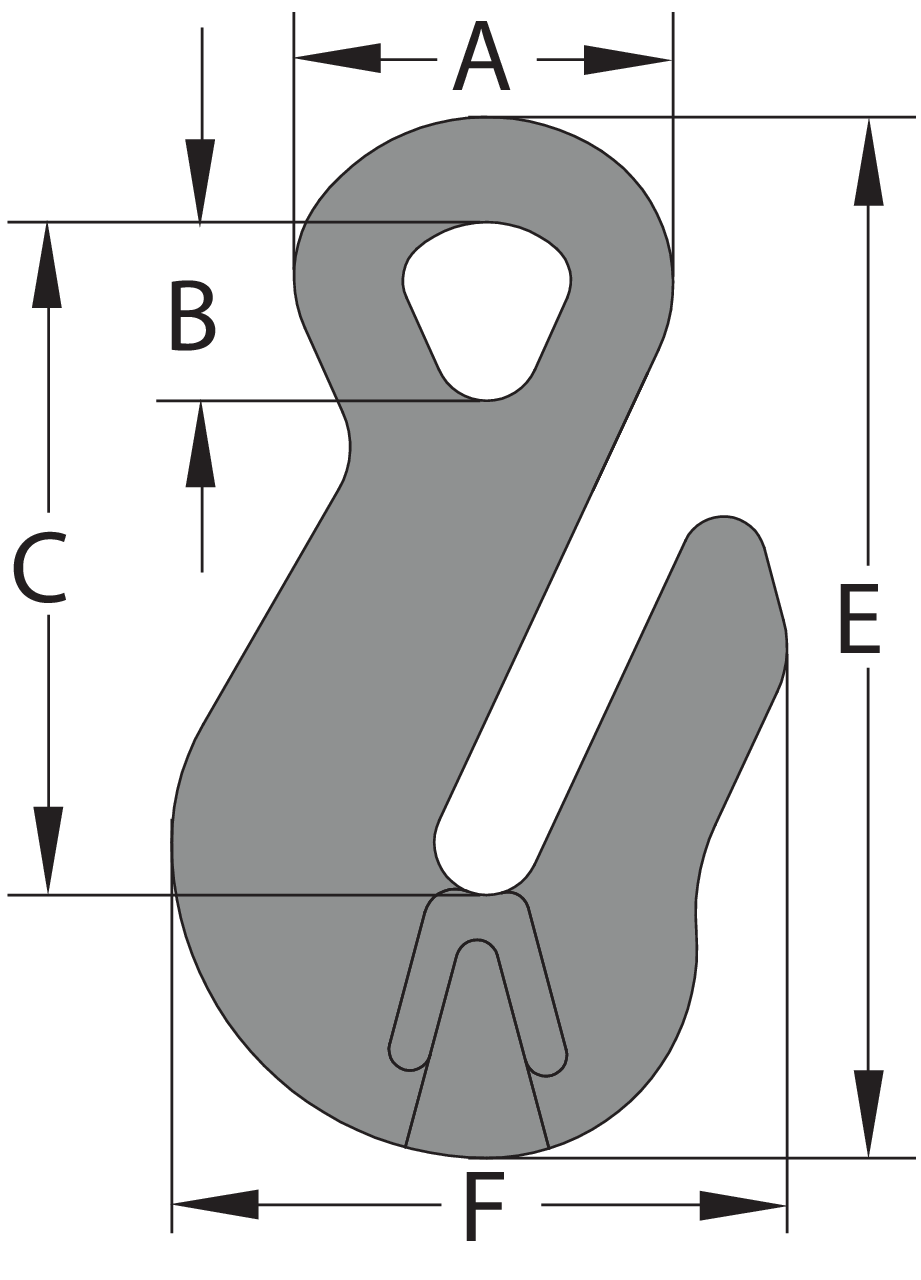

Eye cradle grab hook Platinum A-1348_drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Chain (mm) A (mm) B (mm) C (mm) E (mm) F (mm) Weight
kg
CAD
11.211026200 2.5 7-8 36,3 16,5 64 98,2 58,2 0.35
11.211026209 4 10 49,5 26 78 120 68,8 0.64
11.211026218 6.7 13 71,4 33 115 175 101 1.7
11.211026227 10 16 78,9 38 133 204 125 2.9
