Crosby



Proof: 2,5 x WLL

  • Material: Alloy steel grade 10. Not to be heat-treated.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
Clevis sling hook Platinum L-1339

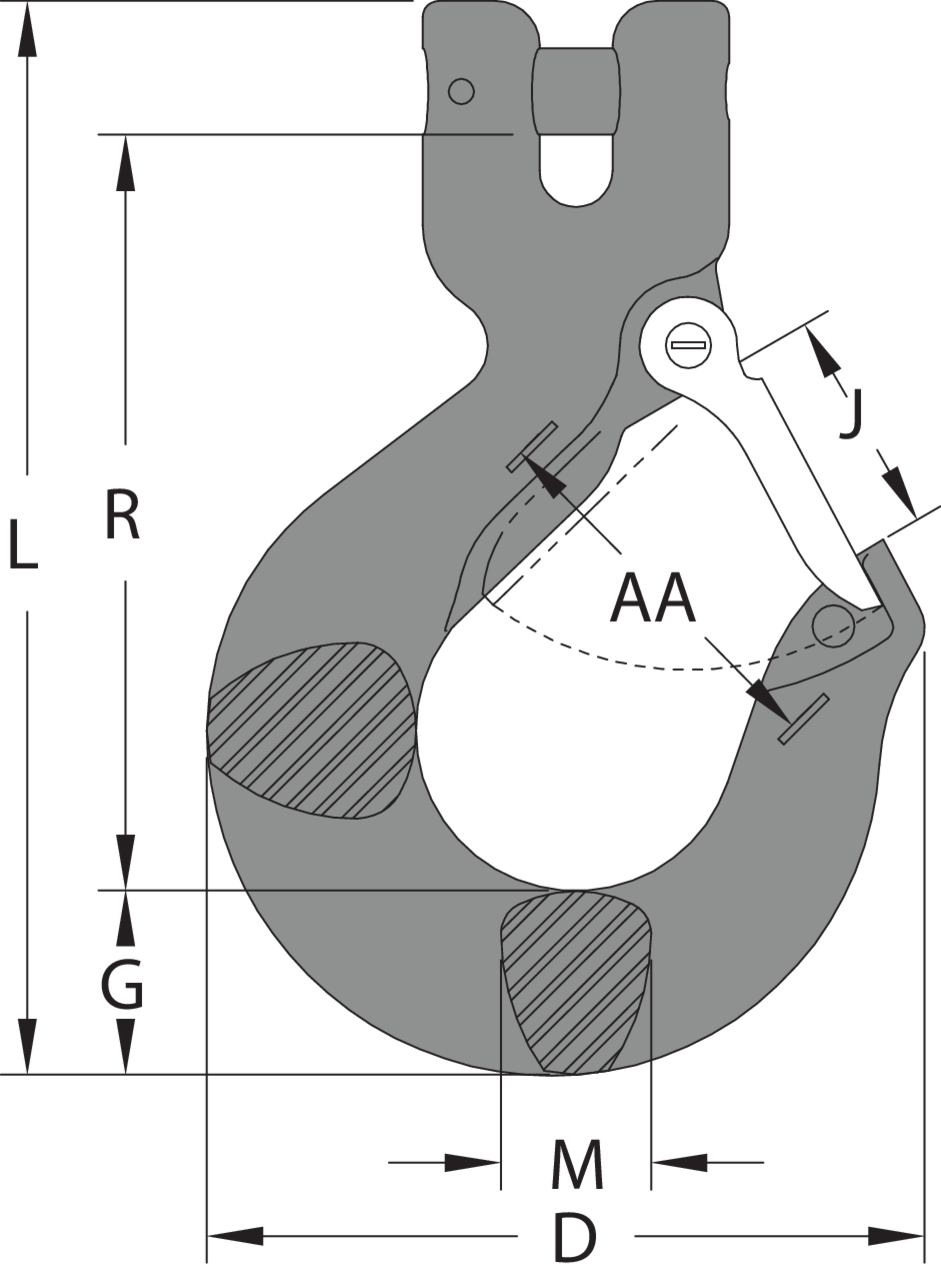

Clevis sling hook Platinum L-1339_drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Chain (mm) D (mm) G
mm
J (mm) L (mm) M (mm) R (mm) AA Weight
kg
CAD
11.111049103 1.4 6 72,6 18,5 23,6 107 16 74,9 38,1 0.29
11.111049112 2 7 98 26,4 30,2 144 19,1 101 50,8 0.72
11.111049121 2.5 8 98 26,4 30,2 144 19,1 100 50,8 0.71
11.111049130 4 10 111 30,2 38,9 171 25,4 120 63,5 1.17
11.111049149 6.7 13 142 36,6 45,2 213 29,7 150 76,2 2.39
11.111049158 10 16 172 48,0 61,2 259 36,6 177 102 4.45
11.111049167 15.6 18-20 211 71,9 68,3 332 50 203 114 8.3
