Crosby

Proof: 2,5 x WLL




  • Material: Alloy steel grade 10. Not to be heat-treated.
  • Marking: Code and grade
  • Finish: Painted
  • Safety factor: 4:1
  • Grade: 10
Clevis Hook Platinum S-1317

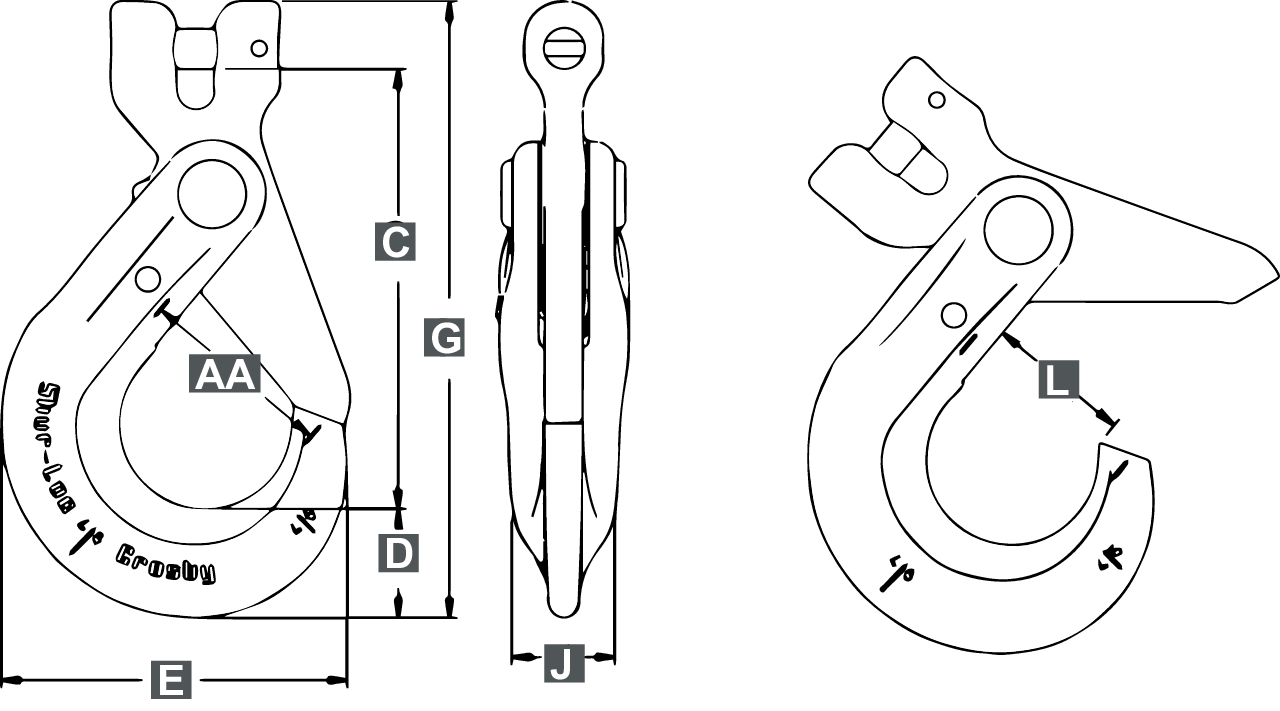

Clevis Hook Platinum S-1317_drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Chain (mm) C (mm) D (mm) E (mm) G (mm) J (mm) L (mm) AA Weight
kg
CAD
11.161028991 1.5 6 87,4 20,1 66 121 16,0 29 38,1 0.35
11.161029000 2 7 114 27,9 89 159 20,6 35,1 51 0.82
11.161029009 2.6 8 114 27,9 89 159 20,6 35,1 51 0.82
11.161029018 4 10 140 29,7 112 192 24,1 46,5 63,5 1.66
11.161029027 6.8 13 173 42,4 139 242 29,5 56,4 76,2 3.08
11.161029036 10.3 16 209 51,8 167 295 38,1 67,3 89 5.4
11.161029071 16 18-20 239 56,4 197 336 51,6 89,4 6.8
11.161029080 20 22 283 62,2 222 392 55,9 97,3 12.7
11.161029089 27.1 26 319 81,5 251 468 68,1 104 22.5

Download CAD
