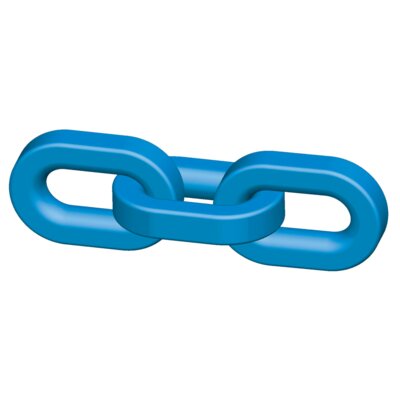

General: Specially rugged profile chain in grade 12 for lifting.

  • Material: Alloy steel grade 12
  • Marking: Every link is marked with manufacturer ID and grade
  • Temperature range: -60ºC to 300ºC
  • Finish: Light blue powdercoated
  • Note: Not to be heat-treated
  • Grade: 12
Chain
KLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Chain diameter
mm
WLL
ton
Min. breaking force
kN
Outside width
mm

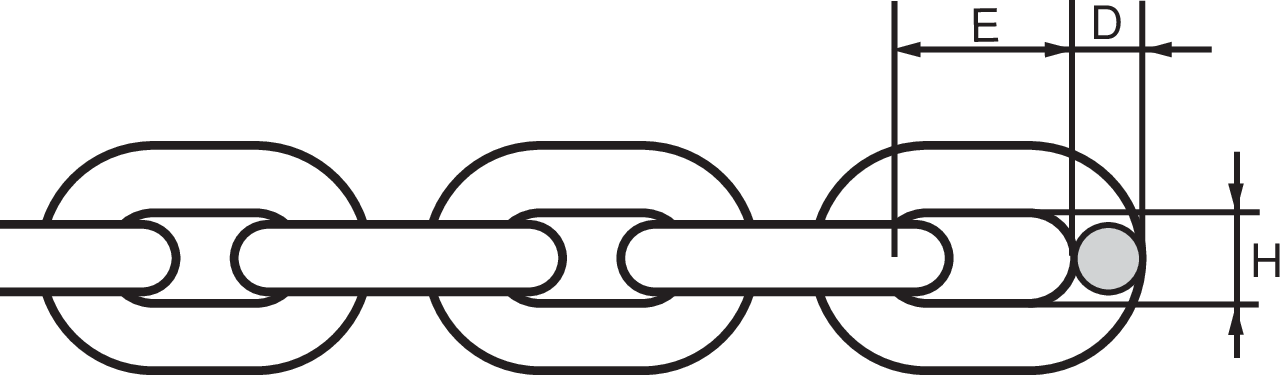

D
mm
E
mm
H
mm
Weight
kg
CAD
11.6676999 7 2,36 92,6 26 7 22 10 1,36 -
11.6677058 8 3 118 29 8 25 11 1,64 -
11.6677065 10 5 196 37 10 33 14 2,7 -
11.6677072 13 8 314 50 13 41 19 4,8 -
11.6677080 16 12,5 491 60 16 51 23 7,17 -
*Lifting applications for safety factor 4:1
